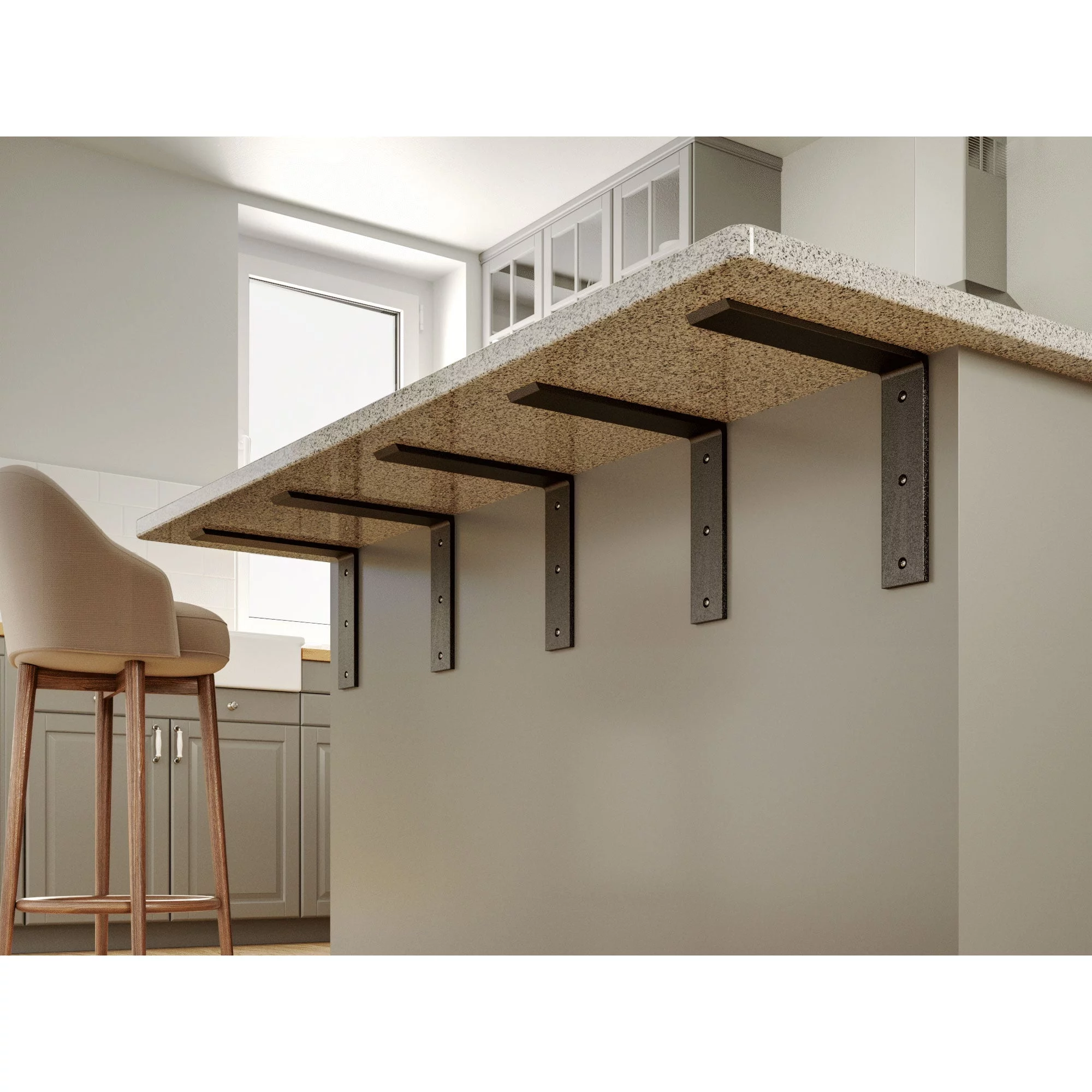

Standard Front Mount Countertop L Bracket

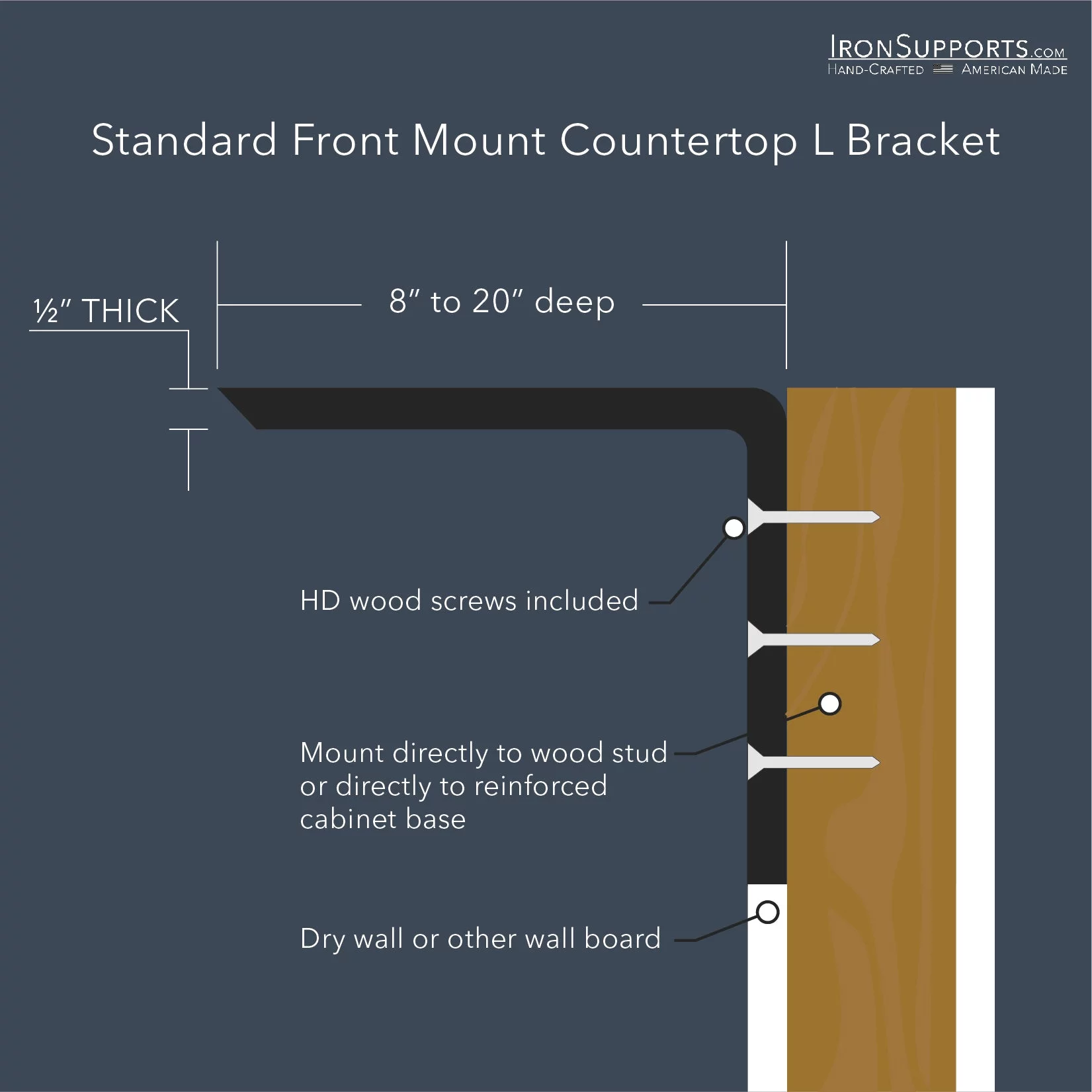

Specifications Dimensions: 2.5” Wide x ½” Thick Sizes ranging in 8" Deep x 6" High to 20" Deep x 14" High 3 Mounting Holes, sized for 14 x 2 ½” Phillips Flat Head Screws (Included) Material: Solid ½” Thick x 2.5 Wide American Steel Finish: Premium powder coated finish (or choose raw steel) Additional Information Carrying Capacity: 125 Lbs. per bracket The horizontal end has a smooth bevelled end for safety Made to screw into 2x4 or 2x6 lumber Uses Support Countertops on Knee Walls Support Universal Shelves Support Kitchen Island Countertops Support Stone or Wood Desks Support Entry Wall Benches Support Breakfast Bars Support anything you want on a wall or cabinet including Granite, Quartz, Natural Stone, Concrete, Wood, Formica, and all other materials Determine What Size & Quantity to Order Standard Spacing: 16" - 20" Apart No more than 3" past edge of bracket should be unsupported Example: Your countertop is 20” Deep (20” – 3” = 17”) You’d want to go with an 18” x 12” Bracket Our brackets are listed as follows, depth x height measurements Example: 10” x 8” Bracket 10" would be supporting your material (horizontally or depth) 8" would be mounted to the wall (vertically or height)
